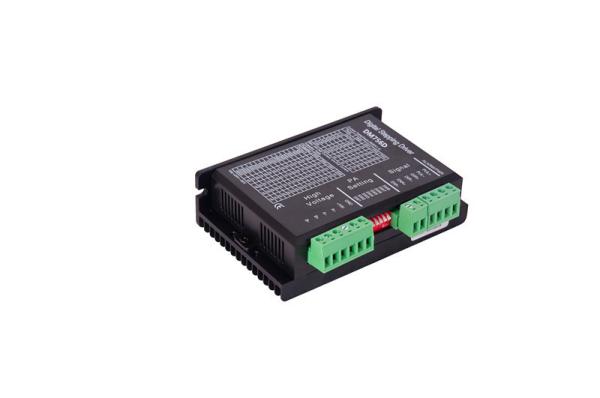

DM756D 2 phase digital stepper motor driver

Product Categories

SHANGHAI DAITTO MACHINERY CO.,LTD

Contact Now

Name: DM756D 2 phase digital stepper motor driver
Brand: DAITTO
Price: 1 USD

Place of Origin : China

Brand Name : DAITTO

Certification : ISO,CE

Model Number : DM756D

MOQ : 500

Contact Now

Quick Detail:

DM756D

Features

1. Adoption of 32-bit DSP, pure sine wave subdivision technology

2. Low-noise, low-vibration and low temperature rising

3. Voltage 24-70VDC

4. With 8 stalls output current setting, current range 2.1-5.6A

5. With 16 stalls microstep subdivision setting

6. Automatic half current, self-test, over voltage, under voltage, over current protection

7. Internal optical isolation, highest frequency response 200KHZ

8. Suitable for nema 23, nema 34 stepper motor current under 5.6A

Current selection

Microstep selection

Pulse/Rev	SW5	SW6	SW7	SW8
Default	ON	ON	ON	ON
800	OFF	ON	ON	ON
1600	ON	OFF	ON	ON
3200	OFF	OFF	ON	ON
6400	ON	ON	OFF	ON
12800	OFF	ON

DM756D 2 phase digital stepper motor driver Images
