nema 17 geared stepper motor

Product Categories

SHANGHAI DAITTO MACHINERY CO.,LTD

Contact Now

Place of Origin : China

Brand Name : Nema

Model Number : nema 17 geared stepper motor

MOQ : 1pc

Price : based on the specification and quantity

Packaging Details : cartons

Delivery Time : according to model No and quantity

Payment Terms : pay by T/T

Supply Ability : 1000sets/month

Contact Now

Quick Detail:

Nema 17 planetary gearbox Specification

Nema 17 stepper motor specification

Model No	Step Angle (°)	Rated Voltage (V)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (Kg.cm)	Detent Torque (g.cm Max)	Rotor Inertia (g.cm²)	Motor Length (mm)	Leads No.	Motor Weight (Kg)
42HS29-0804	1.8	2.3	0.8	2.9	3	1.8	180	25	29	4	0.16
42HS34-0306	1.8	10.3	0.3	34.2	25.5	2.2	200	34	34	6	0.22
42HS34-0844	1.8	4.8	0.84	5.75	8	2.8	200	34	34	4	0.22
42HS34-1704	1.8	2.2	1.7	1.3	1.8	2.8	200	34	34	4	0.22
42HS40-0404	1.8	12.0	0.4	30	60	4.2	220	54	40	4	0.28
42HS40-0806	1.8	6.0	0.8	7.5	6.7	2.8	220	54	40	6	0.28
42HS40-1684	1.8	2.8	1.68	1.68	3.4	4	220	54	40	4	0.28
42HS40-1206	1.8	4.0	1.2	3.3	3.5	2.97	220	54	40	6	0.28
42HS48-0404	1.8	12.0	0.4	30	45	4.5	280	68	48	4	0.38
42HS48-1304	1.8	4.6	1.3	3.5	6.6	5.5	280	68	48	4	0.38
42HS48-1504	1.8	4.2	1.5	2.8	5.5	5.5	280	68	48	4	0.38
42HS48-1684	1.8	3.4	1.68	2	3.8	5.2	280	68	48	4	0.38
42HS52-1504	1.8	4.5	1.5	3	7	6.8	300	80	52	4	0.45
42HS60-1504	1.8	3.8	1.5	2.5	6	7	360	95	60	4	0.55
Above only for representative products, products of special request can be made according to the customer request.

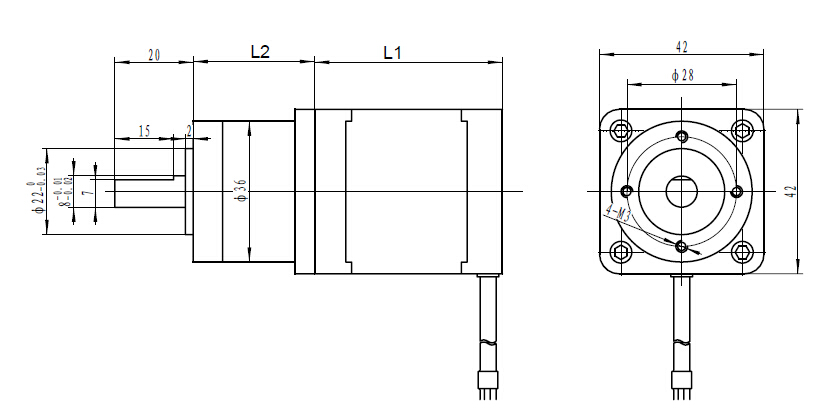

Dimension(mm):

nema 17 geared stepper motor Images
